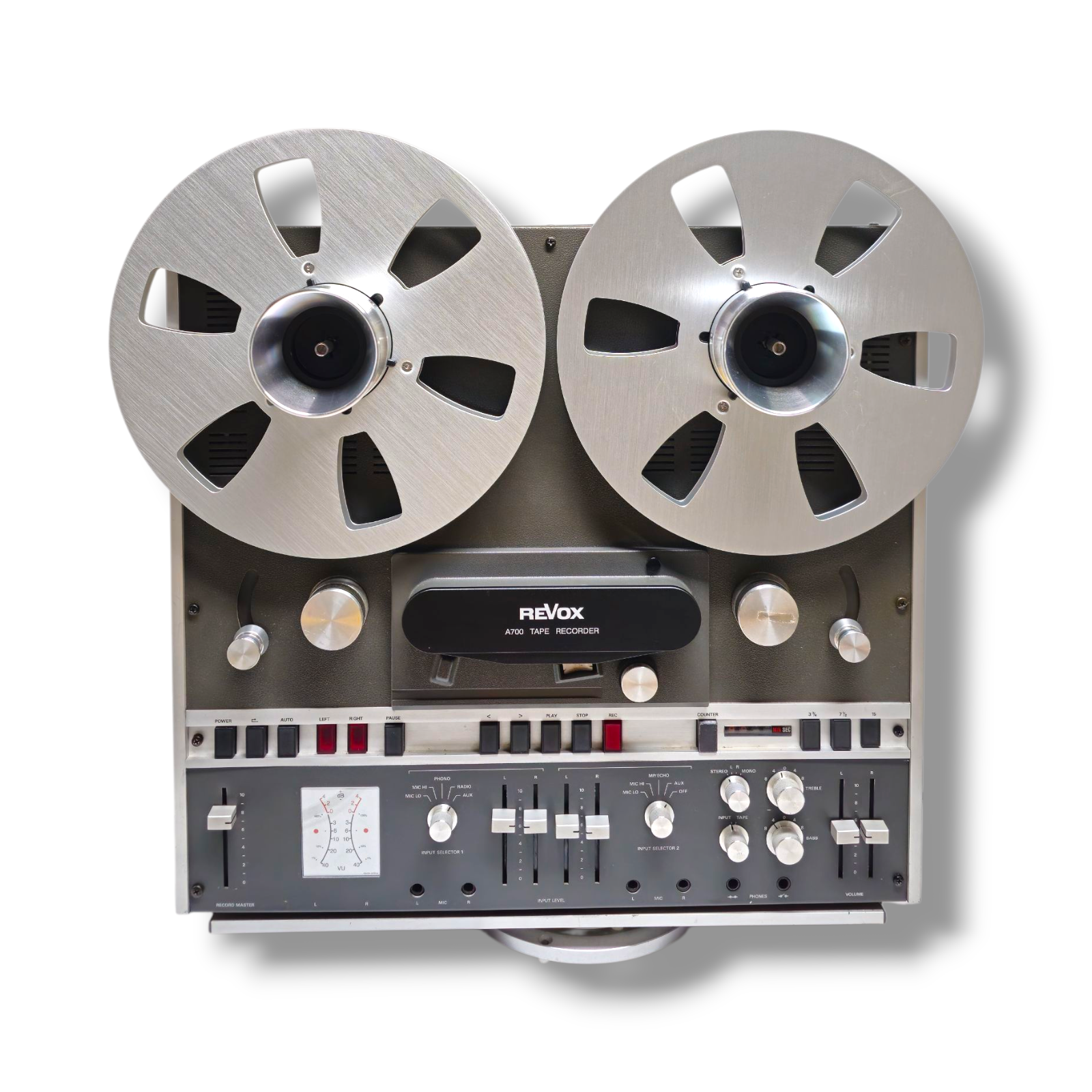

Revox A700 Half Track Reel to Reel Tape Recorder
Revox A700
This machine is in fabulous condition. The Studler heads are first class and sound great.
It has just been fully checked and serviced and is supplied with a 6 month warranty.
This machine is half track and uses 1/4 inch standard tapes.
It has been upgraded to a LED VU meter to add to the look.
The A700 is the top of the prosumer offerings from Revox and is very well sought after.
This is a genuine 2 track machine which records and plays in stereo in 1 direction, with a choice of 4 stabilised speeds.
As with all revox equipment reliability is excellent.
Supplied with mains lead, NAB adaptors and OddBits Premium 10.5" metal reels. Also comes with a spool of Agfa PE39 HIFI tape (just under a full reel).
Grade A.
Specifications
Track system: 2-track, stereo system
Heads: 1 x record, 1 x play, 1 x erase
Motor: 2 x reel, 1 x capstanReel size: up to 10.5 inch reel
Equalization: NAB
Tape speeds: 3 3⁄4 7 1⁄2 15 ips
Wow and flutter: 0.06% (15 ips)
Frequency response: 30Hz to 22kHz (15 ips)
Signal to Noise Ratio: 65dB
Total harmonic distortion: 0.6%
Crosstalk: 45dB
Input: 40mV (line), 3mV (DIN), 0.15mV (mic)
Output: 1.55V (line), 0.775V (DIN)
Semiconductors: 16 x IC, 2 x LSI, 96 x transistors, 99 x diodes, 7 x rectifiers
Input/output at standard phono level: Yes
This model has built-in speaker amplifier: No
This model has built-in speakers: No
This model has standard headphone socket: Yes
Serviced: Yes
